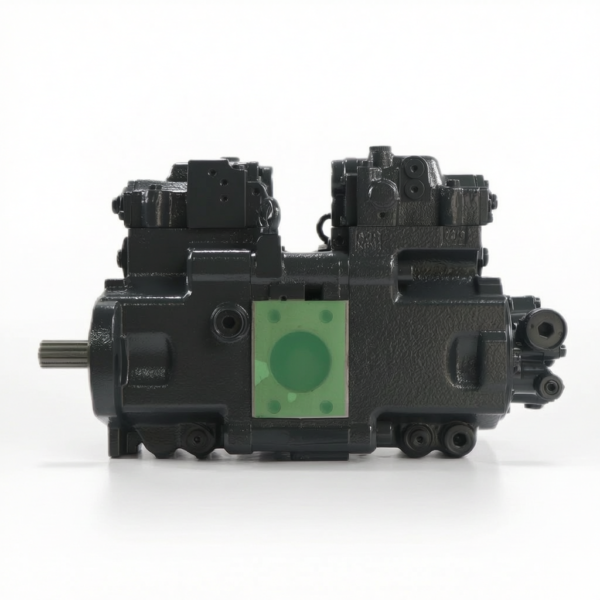

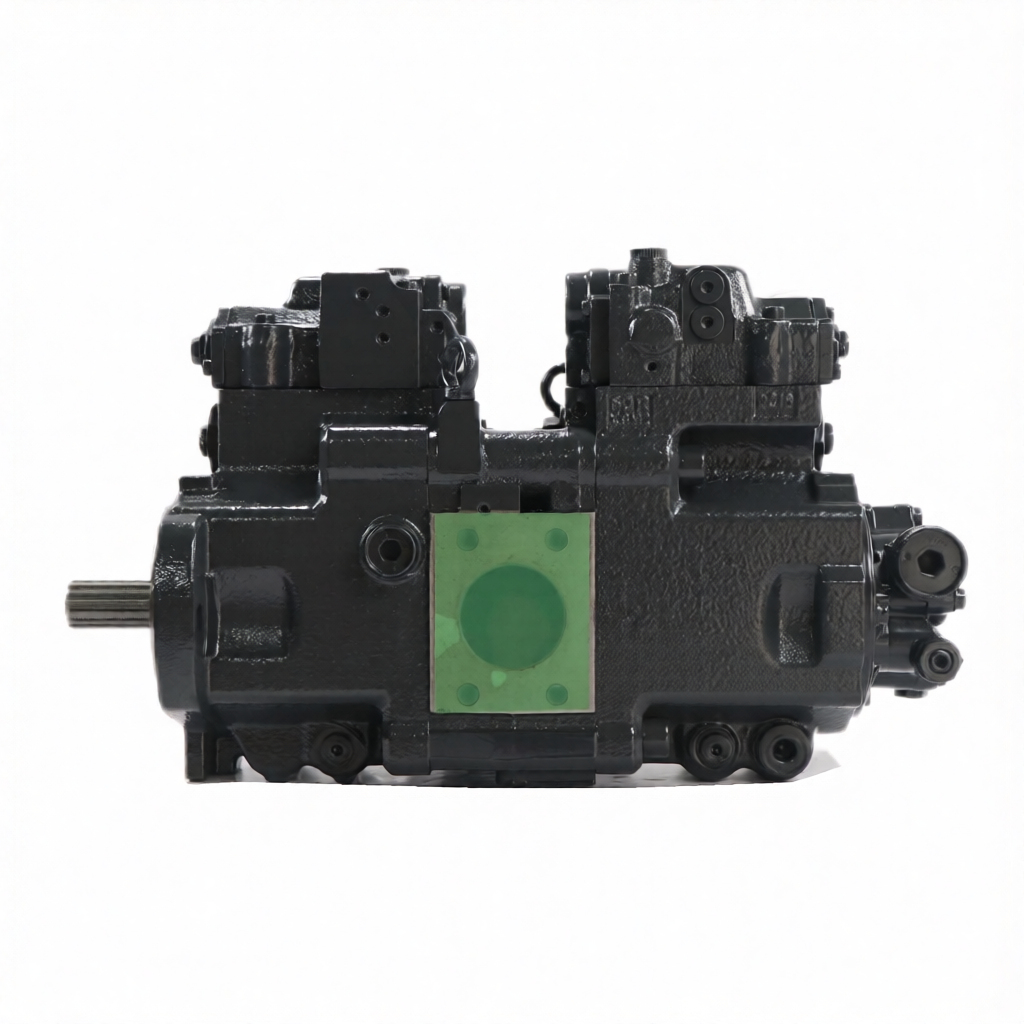

Excacator Model
|
EC140C
|
|
|
Pump Model
|
K7V63DTP-0E01
|
|
|
Part No.
|
14555190/08802780
|
|
|
Displacement（ml/r）
|
63
|
|
|
Nominal Pressure（Mpa）
|
35
|
|
|
Max Pressure（Mpa）
|
39
|
|
|
Rotate Speed（rpm/min）
|
2400
|
|
|
Teeth
|
14T
|
|
|
Rotation（R/L）
|
R
|
|
|
Variable Single/Double Hydraulic Pump
|
Variable Double Hydraulic Pump
|
|
|
Fluid Medium
|
Hydraulic Oil
|
|
|
Operating Temperature（°C）
|
‘-20°C~80°C
|
|
|
Weight（Kg）
|
95
|
|
|
Dimension(L*W*H)（mm）
|
600*240*350
|
|
|
Package（Wooden /Cartons）
|
Wooden
|
|
|
Color
|
Customizable
|
|
|
Guarantee: We will check the goods and send detail pictures to buyer to confirm before shipping.
|
||
|

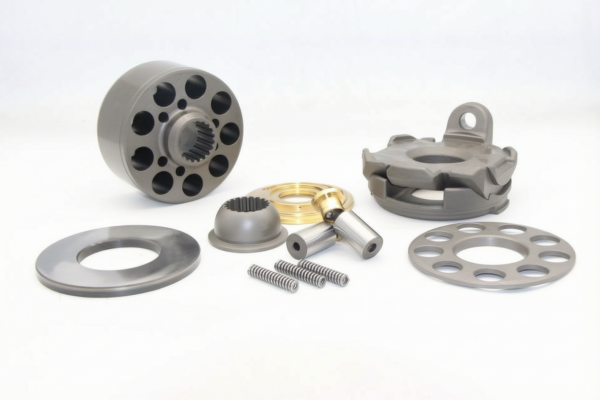

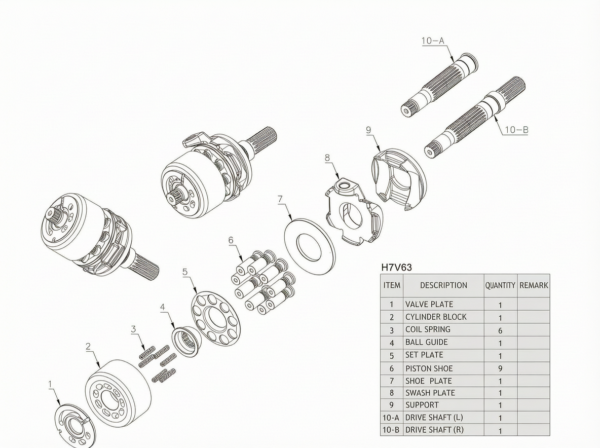

ITEM
|
DESCRIPTION
|
QUANTITY
|
|
9
|
SUPPORT
|
1
|
|
8
|
SWASH PLATE
|
1
|
|
7
|
SHOE PLATE
|
1
|
|
6
|
PISTON SHOE
|
9
|
|
5
|
SET PLATE
|
1
|
|
4
|
BALL GUIDE
|
1
|
|
3
|
COIL SPRING
|
6
|
|
2
|
CYLINDER BLOCK
|
1
|
|
1
|
VALVE PLATE
|
1
|
|
10-A
|
DRIVE SHAFT L
|
1
|
|
10-B
|
DRIVE SHAFT R
|
1
|
Product Description
Complete range of hydraulic pumps
Excavator Hydraulic Pump Series

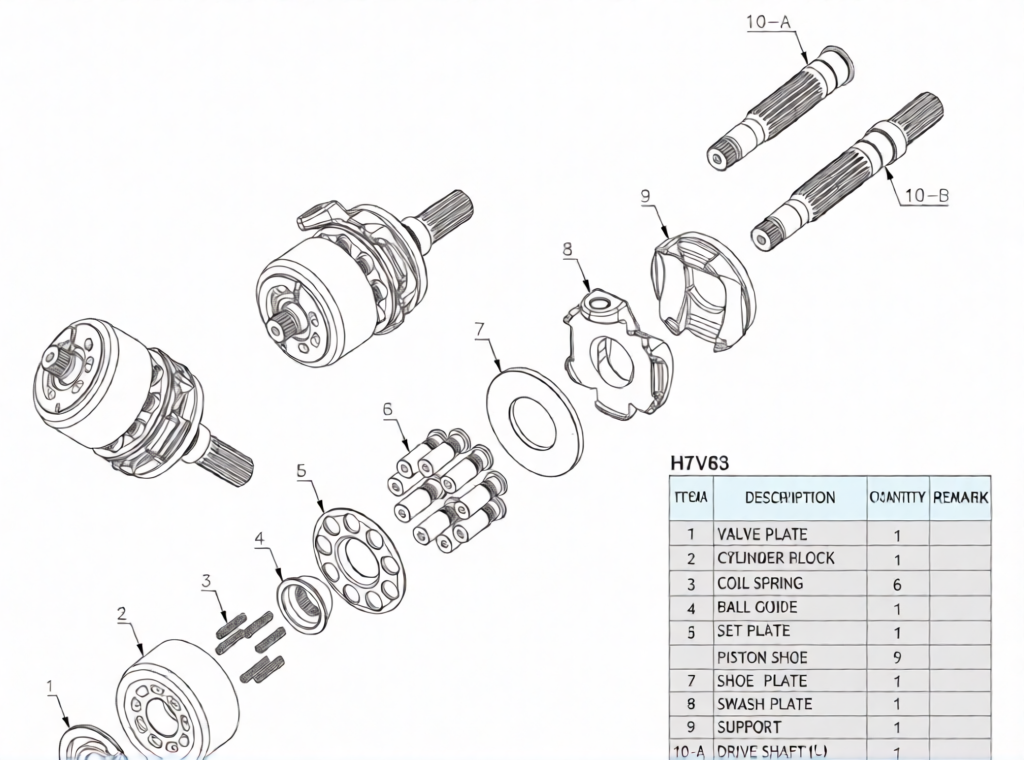

Hydraulic pump decomposition chart
Pump casing: The housing of a hydraulic pump that protects the internal components and withstands hydraulic pressure.
Rotor or impeller: Responsible for the suction and discharge of liquid, usually a rotating component. Shaft: connects the rotor or
impeller to the power source and transmits power. Seals: prevent fluid leakage and ensure the tightness of the hydraulic system.
Inlet and outlet ports: the inlet and outlet channels for the liquid. Valves: devices that control the direction of liquid flow
and pressure. Strainer: filters impurities in the liquid and protects the internal components of the pump.
impeller to the power source and transmits power. Seals: prevent fluid leakage and ensure the tightness of the hydraulic system.
Inlet and outlet ports: the inlet and outlet channels for the liquid. Valves: devices that control the direction of liquid flow
and pressure. Strainer: filters impurities in the liquid and protects the internal components of the pump.
|
For Brand
|
Main pump NO.
|
For Brand
|
Main pump NO.
|
|
E312B
|
K3V63DT-9N2D
|
PC200-7
|
HPV95
|
|
E312C
|
SBS80
|
PC200-8
|
HPV95
|
|
E320C/320D
|
SBS120
|
|
|
|
SK60SR/70SR
|
