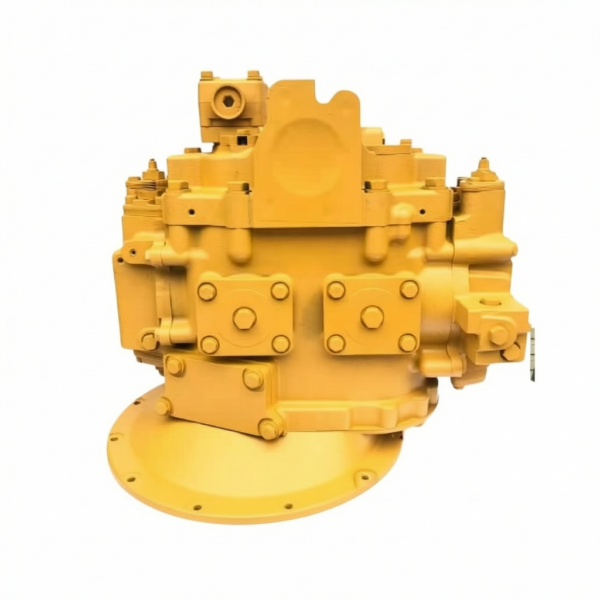

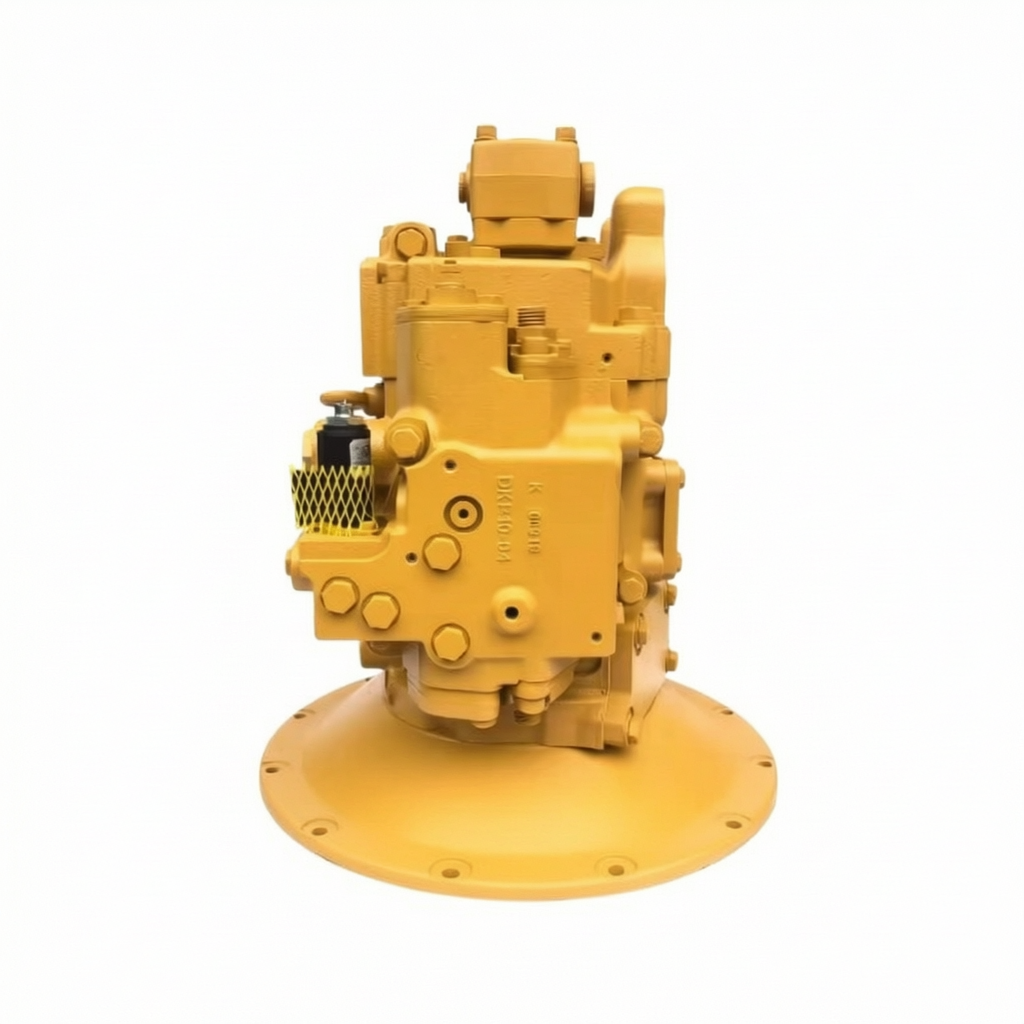

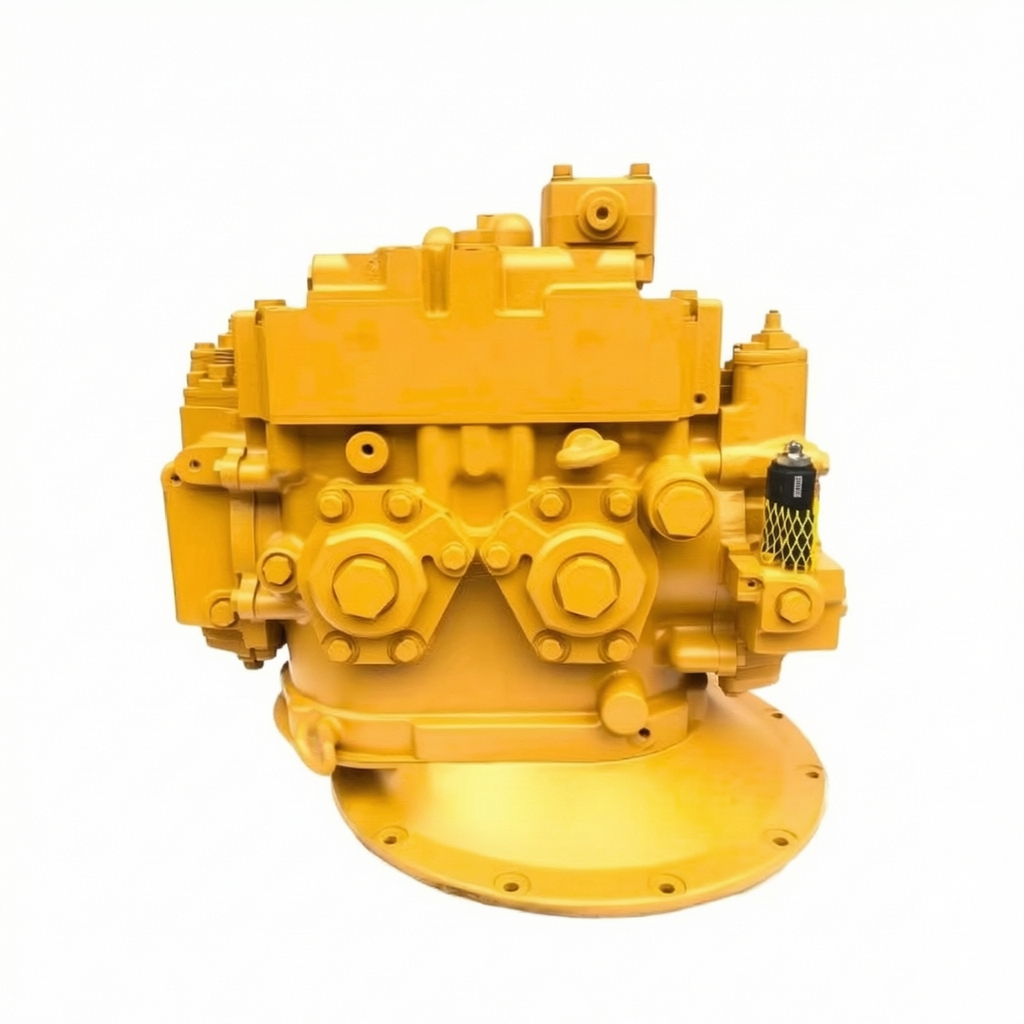

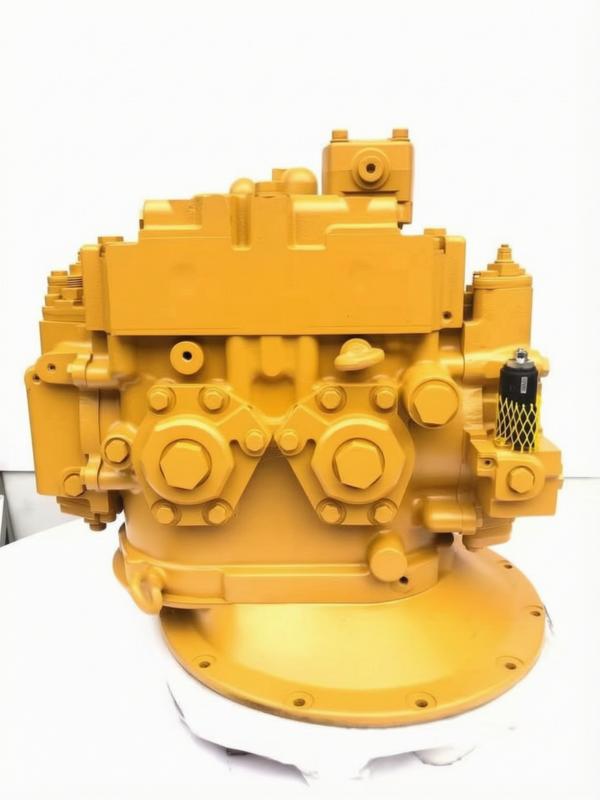

Product description about hydraulic pump
|
||
|
Excacator Model
|
CAT320C/320D
|
|
|
Pump Model
|
SBS120
|
|
|
Part No.
|
59245
|
|
|
Displacement（ml/r）
|
120
|
|
|
Nominal Pressure（Mpa）
|
34.3
|
|
|
Max Pressure（Mpa）
|
37.2
|
|
|
Rotate Speed（rpm/min）
|
1800
|
|
|
Teeth
|
17T
|
|
|
Rotation（R/L）
|
R
|
|
|
Variable Single/Double Hydraulic Pump
|
Variable Double Hydraulic Pump
|
|
|
Fluid Medium（Hydraulic Oil）
|
Hydraulic Oil
|
|
|
Operating Temperature（°C）
|
-20°C-95°C
|
|
|
Weight（Kg）
|
235
|
|
|
Dimension(L*W*H)（mm）
|
540*590*460
|
|
|
Package（Wooden /Cartons）
|
Wooden /Cartons
|
|
|
Color（Customizable）
|
Customizable
|
|
|

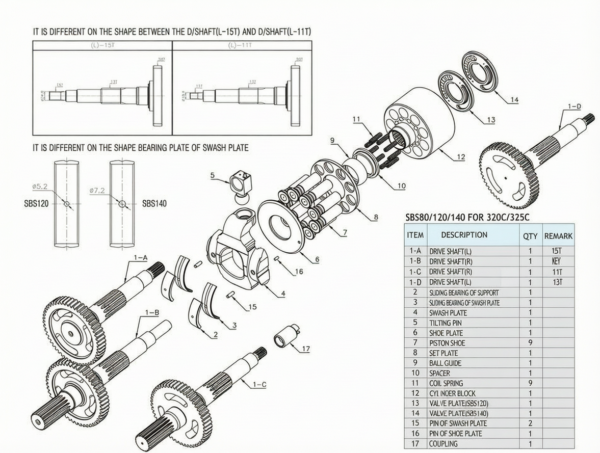

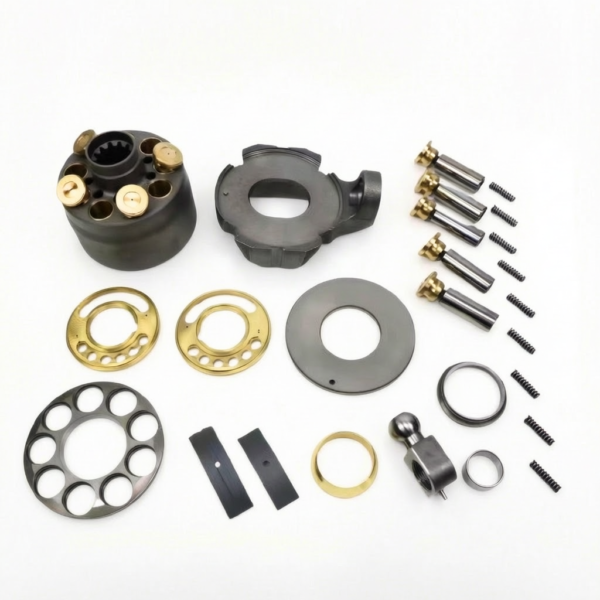

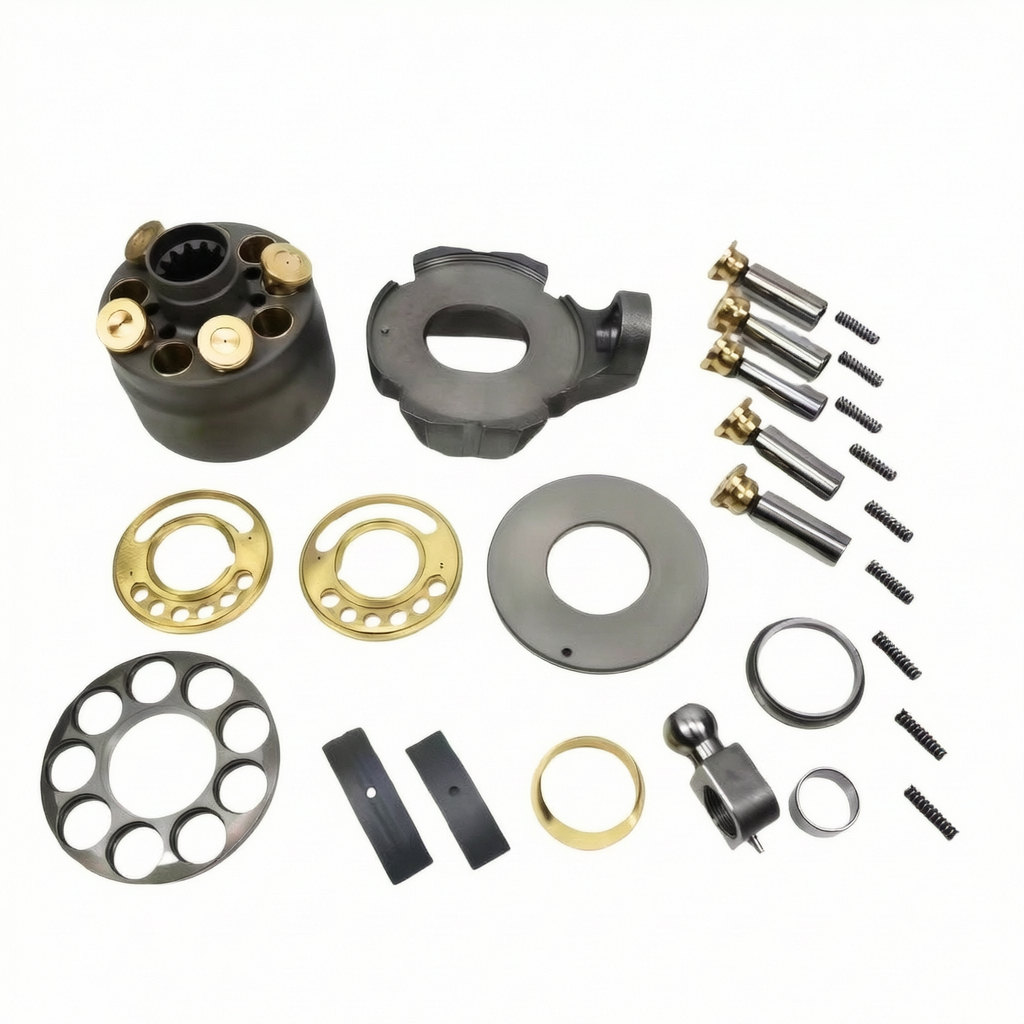

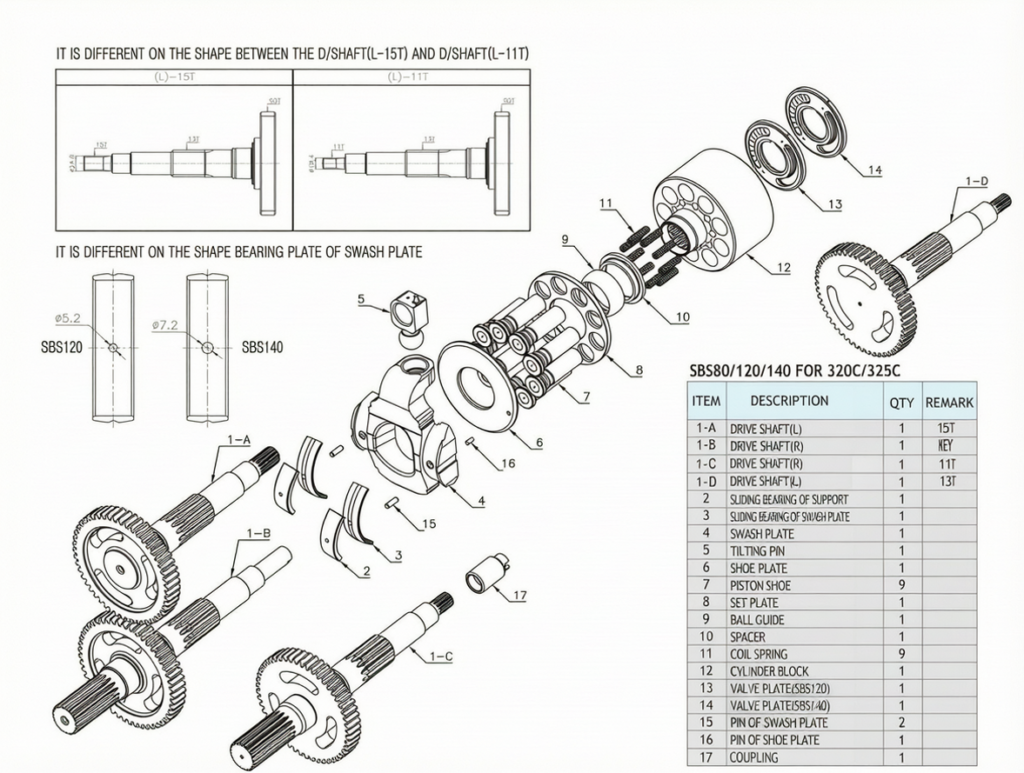

ITEM
|
DESCRIPTION
|
QUANTITY
|
|
1-A
|
DRIVE SHAFT(L)
|
1
|
|
1-B
|
DRIVE SHAFT(R)
|
1
|
|
1-C
|
DRIVE SHAFT(R)
|
1
|
|
1-C
|
DRIVE SHAFT(L)
|
1
|
|
2
|
SLIDING BEARING OF SUPPORT
|
1
|
|
3
|
SLIDING BEARING OF SWASH PLATE
|
1
|
|
4
|
SWASH PLATE
|
1
|
|
5
|
TILTING PIN
|
1
|
|
6
|
SHOE PLATE
|
1
|
|
7
|
PISTON SHOE
|
9
|
|
8
|
SET PLATE
|
1
|
|
9
|
BALL GUIDE
|
1
|
|
10
|
SPACER
|
1
|
|
11
|
COIL SPRING
|
9
|
|
12
|
CYLINDER BLOCK
|
1
|
|
13
|
VALVE PLATE(SBS120)
|
1
|
|
14
|
VALVE PLATE (SBS140)
|
1
|
|
15
|
PIN OF SWASH PLATE
|
2
|
|
16
|
PIN OF SHOE PLATE
|
1
|
|
17
|
COUPLING
|
1
|

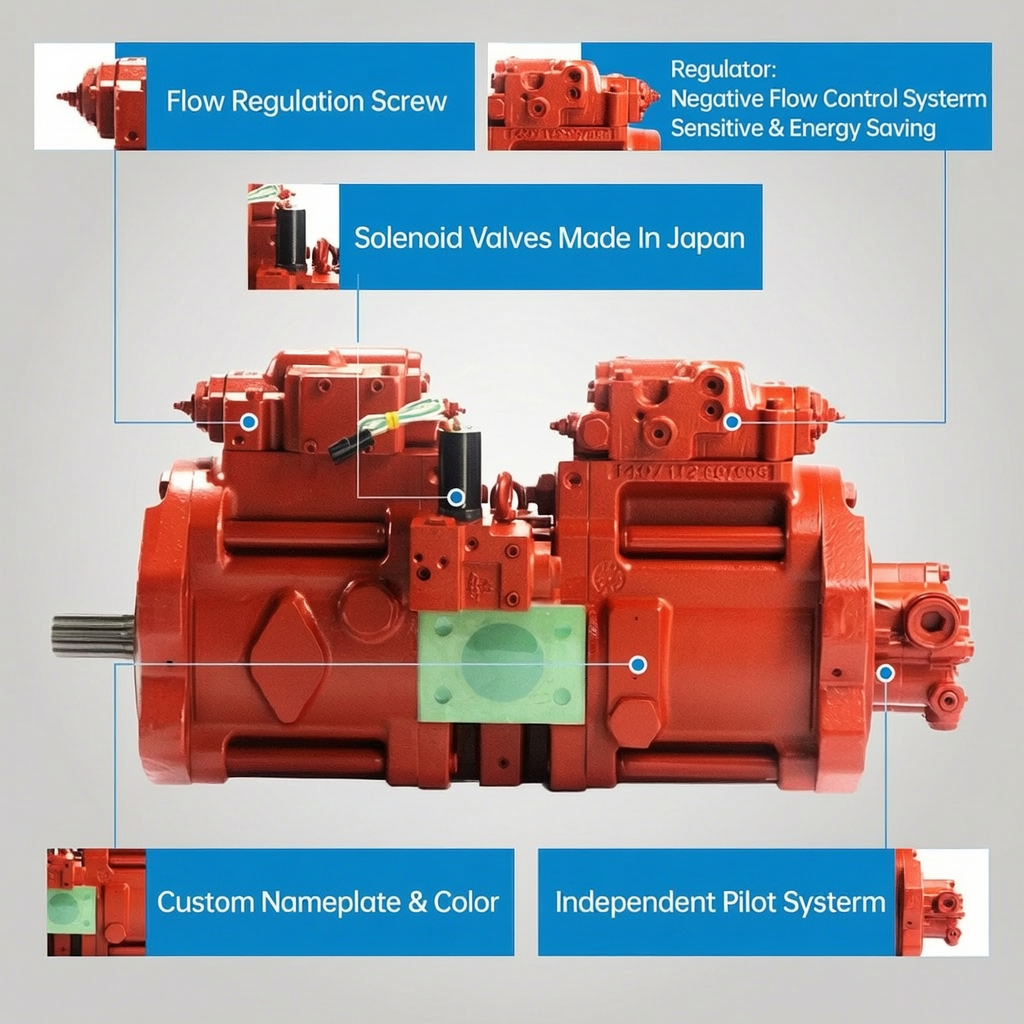

The following product selling point only represents the Kawasaki series hydraulic pump, if you have any questions about other products, please contact us!
