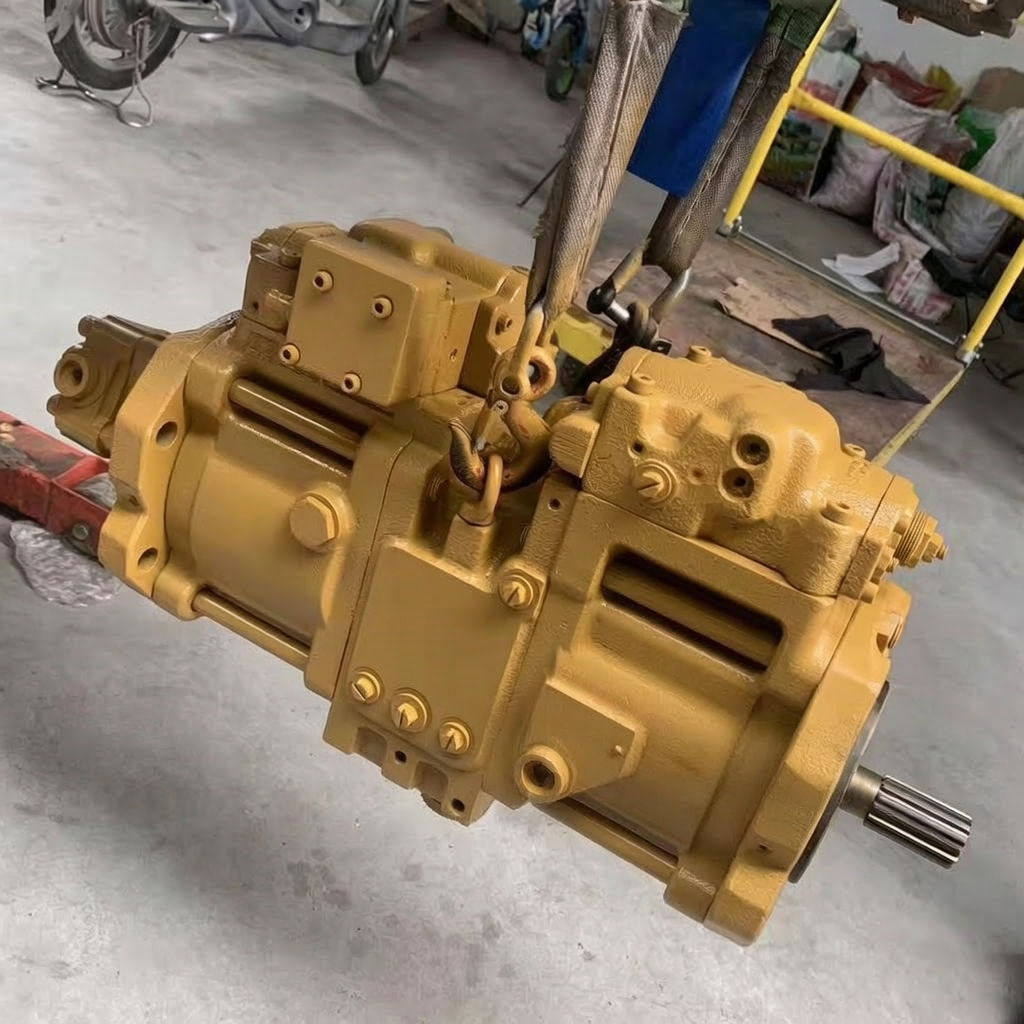

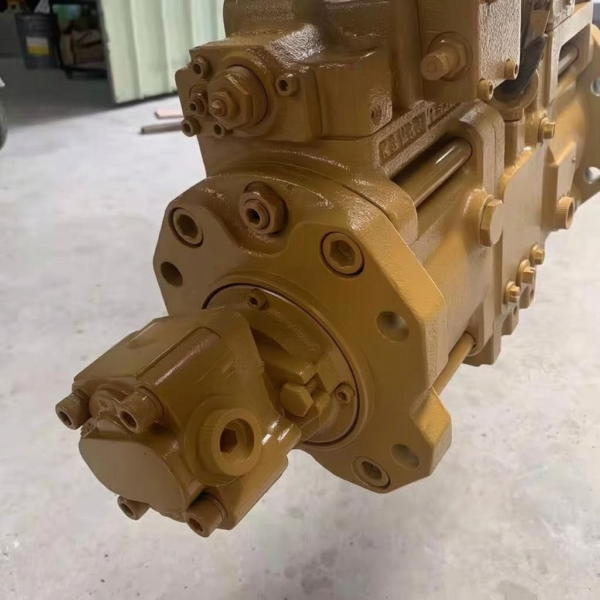

Product description about hydraulic pump
|
||
|
Excacator Model
|
E312B/E318B
|
|
|
Pump Model
|
K5V80
|
|
|
Part No.
|
171-5813
|
|
|
Displacement（ml/r）
|
80
|
|
|
Nominal Pressure（Mpa）
|
/
|
|
|
Max Pressure（Mpa）
|
/
|
|
|
Rotate Speed（rpm/min）
|
/
|
|
|
Teeth
|
/
|
|
|
Rotation（R/L）
|
R
|
|
|
Variable Single/Double Hydraulic Pump
|
Variable Double Hydraulic Pump
|
|
|
Fluid Medium（Hydraulic Oil）
|
Hydraulic Oil
|
|
|
Operating Temperature（°C）
|
-20°C-95°C
|
|
|
Weight（Kg）
|
99
|
|
|
Dimension(L*W*H)（mm）
|
720*300*420
|
|
|
Package（Wooden /Cartons）
|
Wooden /Cartons
|
|
|
Color（Customizable）
|
Customizable
|
|
|

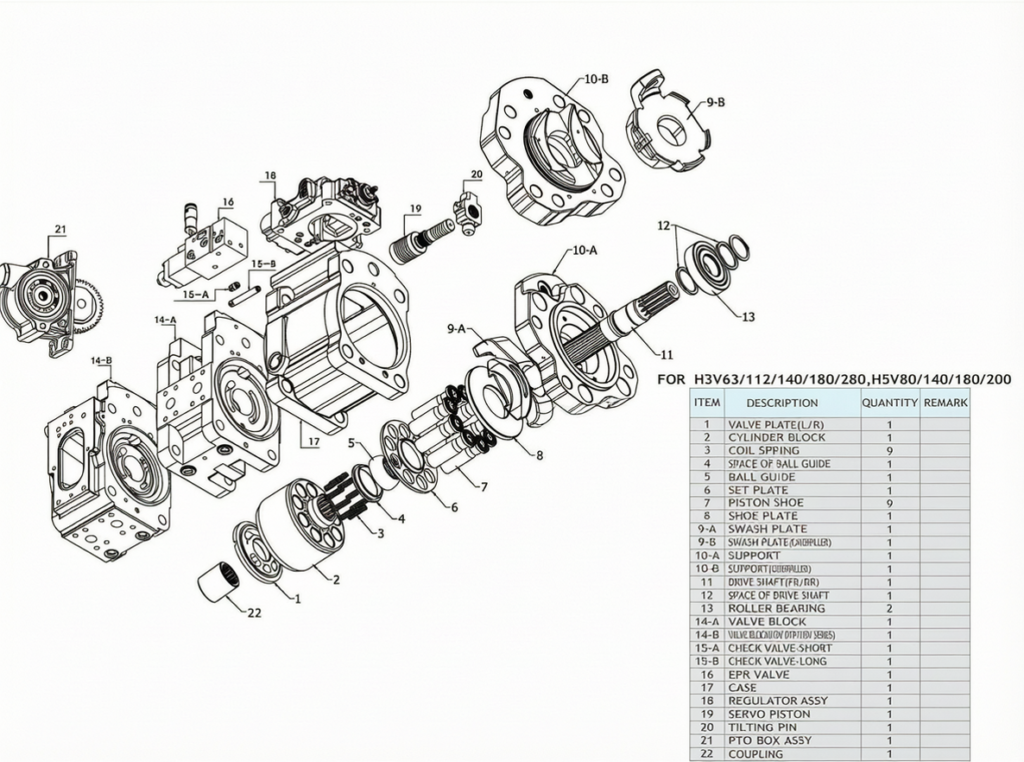

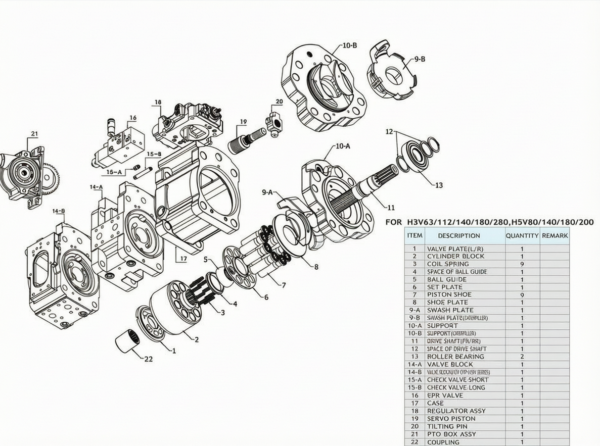

ITEM
|
DESCRIPTION
|
QUANTITY
|
|
1
|

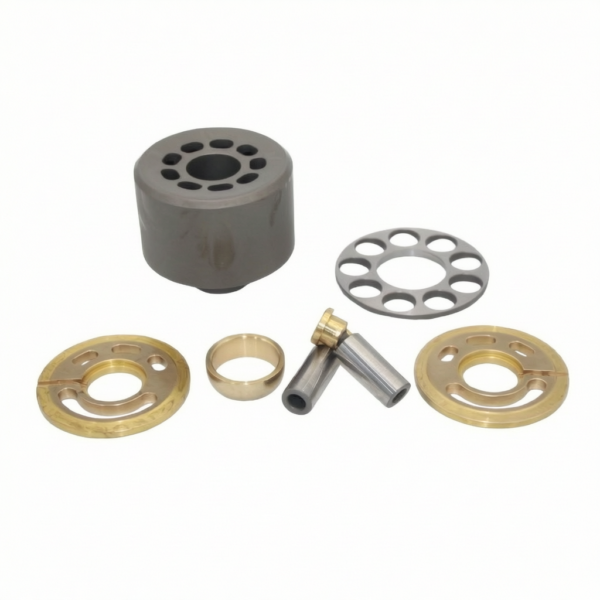

VALVE PLATE(L/R)
|
1
|
|
2
|
CYLINDER BLOCK
|
1
|
|
3
|
COIL SPRING
|
9
|
|
4
|
SPACE OF BALL GUIDE
|
1
|
|
5
|
BALL GUIDE
|
1
|
|
6
|
SET PLATE
|
1
|
|
7
|
PISTON SHOE
|
9
|
|
8
|
SHOE PLATE
|
1
|
|
9-A
|
SWASH PLATE
|
1
|
|
9-B
|
SWASH PLATE(CATERPILLAR)
|
1
|
|
10-A
|
SUPPORT
|
1
|
|
10-B
|
SUPPORT(CATERPILLAR)
|
1
|
|
11
|
DRIVE SHAFT(FR/RR)
|
1
|
|
12
|
SPACE OF DRIVE SHAFT
|
1
|
|
13
|
ROLLER BEARING
|
2
|
|
14-A
|
VALVE BLOCK
|
1
|
|
14-B
|
VALVE BLOCK(H3V DTP/H5V SERIES)
|
1
|
|
15-A
|
CHECK VALVE-SHORT
|
1
|
|
15-B
|
CHECK VALVE-LONG
|
1
|
|
16
|
EPR VALVE
|
1
|
|
17
|
CASE
|
1
|
|
18
|
REGULATOR ASSY
|
1
|
|
19
|
SERVO PISTON
|
1
|
|
20
|
TILTING PIN
|
1
|
|
21
|
PTO BOX ASSY
|
1
|
|
22
|
GOUPLING
|
1
|

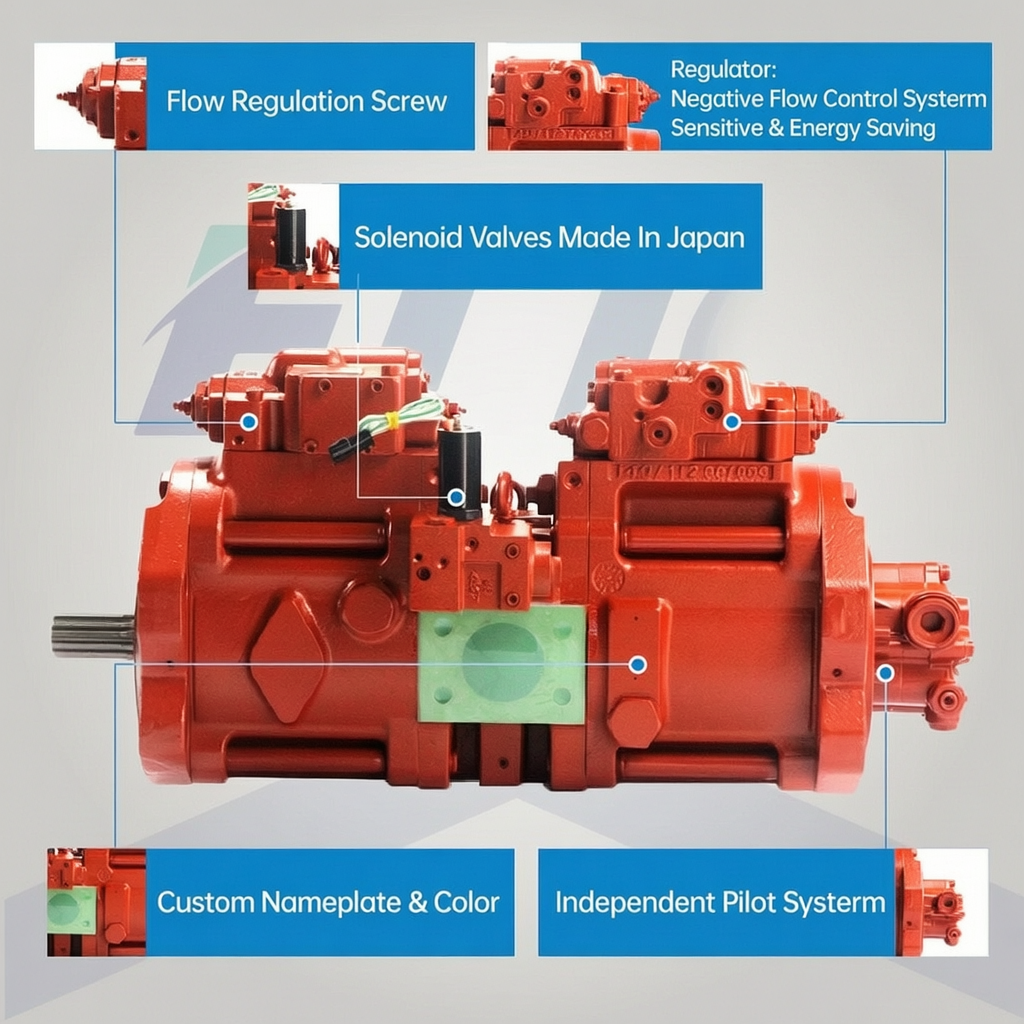

The following product selling point only represents the Kawasaki series hydraulic pump, if you have any questions about other products, please contact us!
