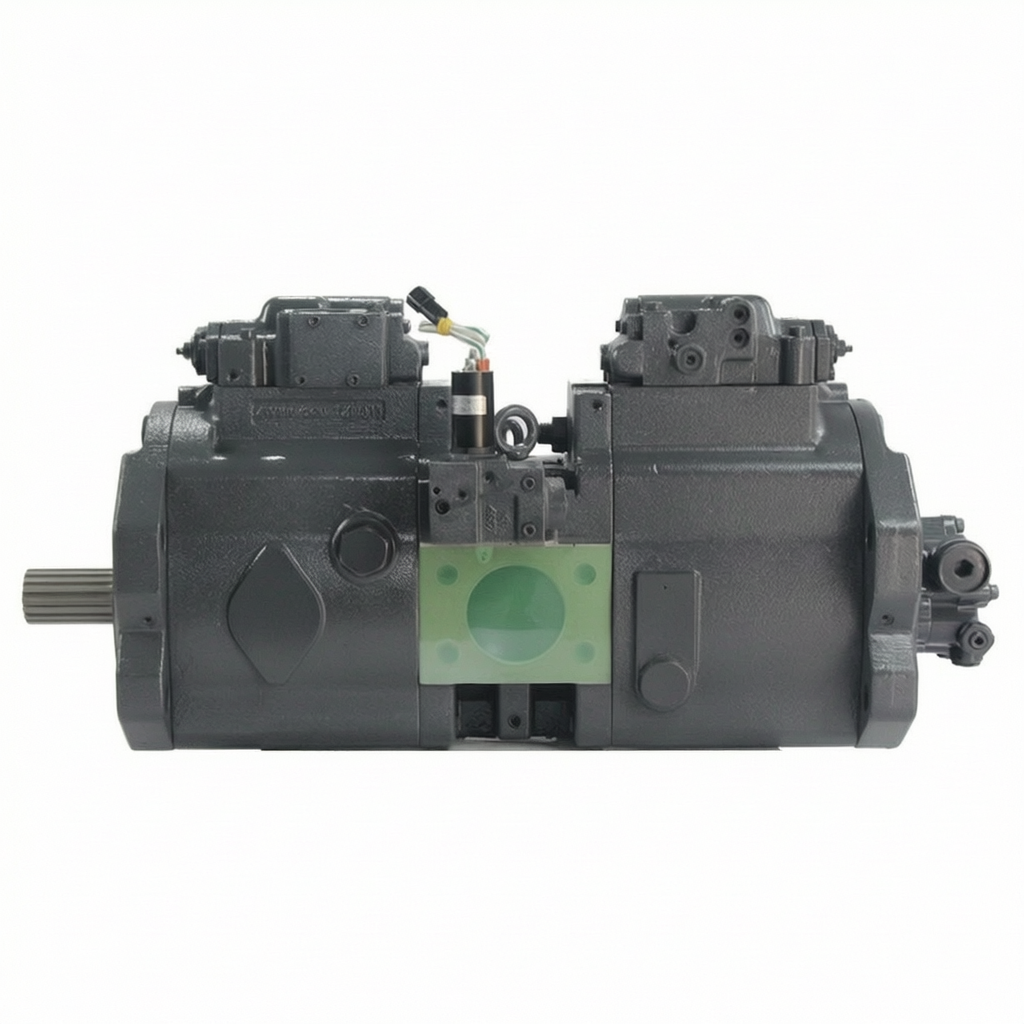

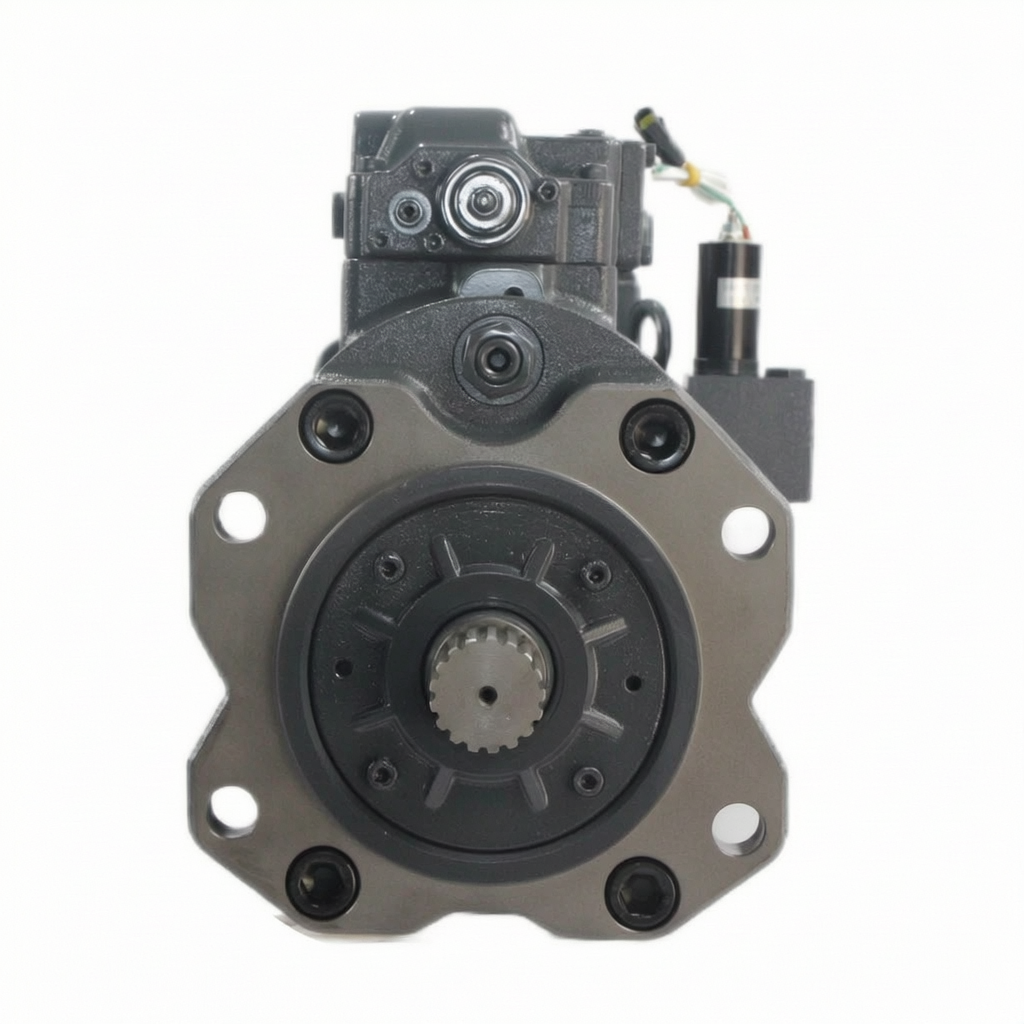

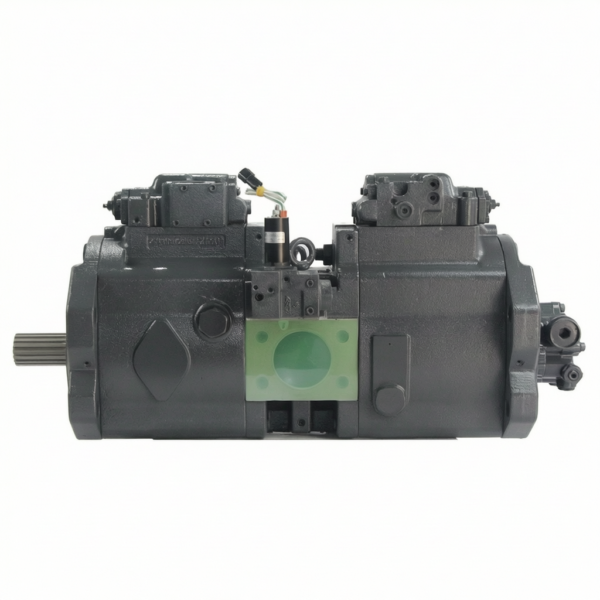

Excacator Model
|
EC290B/EC290C
|
|
|
Pump Model
|
K3V140DT-9N
|
|
|
Part No.
|
14531591/14524052 /14543592
|
|
|
Displacement（ml/r）
|
140
|
|
|
Nominal Pressure（Mpa）
|
34.3
|
|
|
Max Pressure（Mpa）
|
39.2
|
|
|
Rotate Speed（rpm/min）
|
2,160
|
|
|

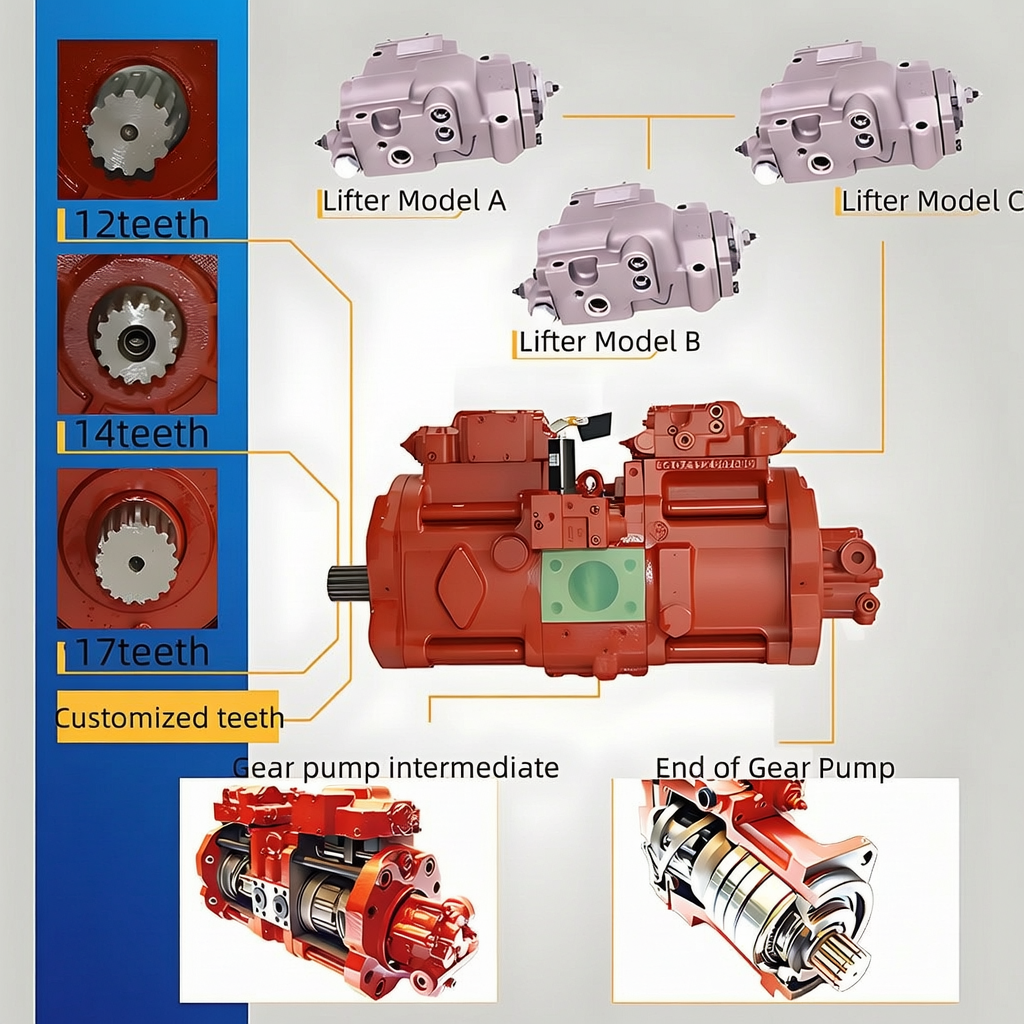

Teeth
|
17T
|
|
|
Rotation（R/L）
|
R
|
|
|
Variable Single/Double Hydraulic Pump
|
Variable Double Hydraulic Pump
|
|
|
Fluid Medium
|
Hydraulic Oil
|
|
|
Operating Temperature（°C）
|
‘-20°C~80°C
|
|
|
Weight（Kg）
|
191
|
|
|

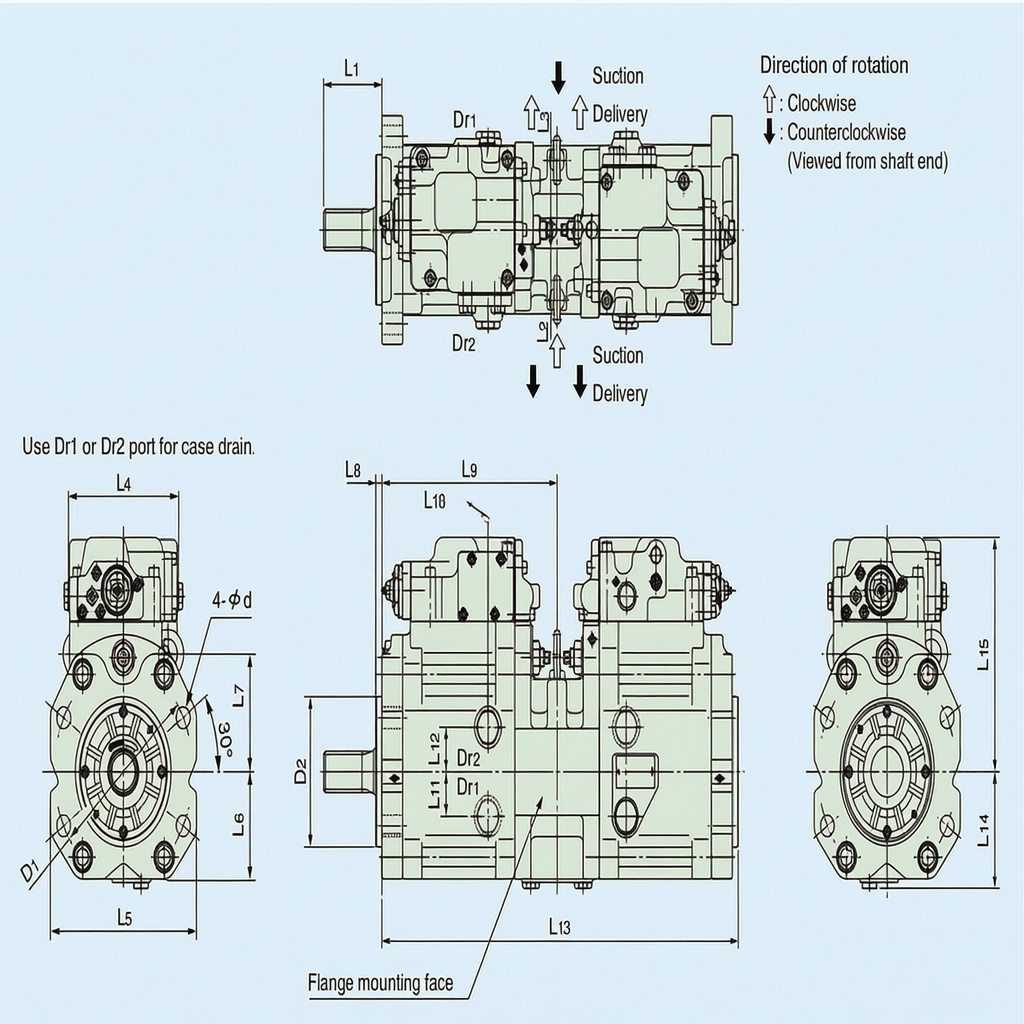

Dimension(L*W*H)（mm）
|
870*330*500
|
|
|
Package（Wooden /Cartons）
|
Wooden
|
|
|
Color
|
Customizable
|
|
|
Guarantee: We will check the goods and send detail pictures to buyer to confirm before shipping.
|
||
|

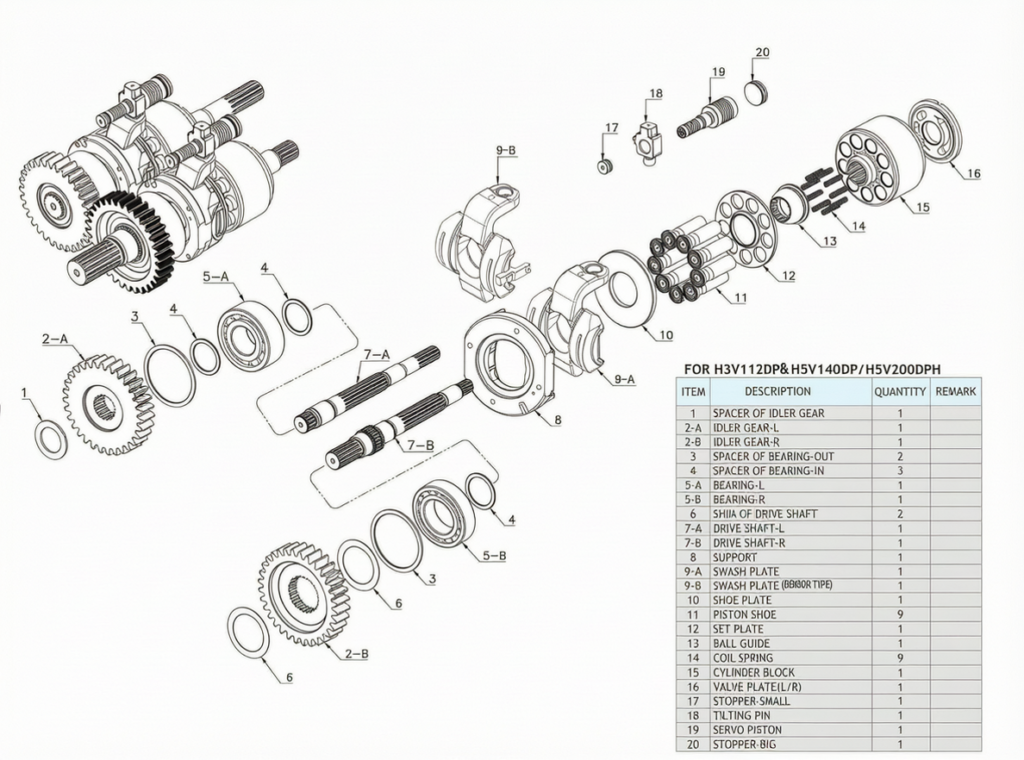

ITEM
|
DESCRIPTION
|
QUANTITY
|
|
1
|
SPACER OF IDLER GEAR
|
1
|
|
2-A
|
IDLER GEAR-L
|
1
|
|
2-B
|
IDLER GEAR-R
|
1
|
|
3
|
SPACER OF BEARING-OUT
|
2
|
|
4
|
SPACER OF BEARING-IN
|
3
|
|
5-A
|
BEARING-L
|
1
|
|
5-B
|
BEARING-R
|
1
|
|
6
|
SHIM OF DRIVE SHAFT
|
2
|
|
7-A
|
DRIVE SHAFT-L
|
1
|
|
7-B
|
DRIVE SHAFT-R
|
1
|
|
8
|
SUPPORT
|
1
|
|
9-A
|
SWASH PLATE
|
1
|
|
9-B
|
SWASH PLATE (SENSOR TYPE)
|
1
|
|
10
|
SHOE PLATE
|
1
|
|
11
|
PISTON SHOE
|
9
|
|
12
|
SET PLATE
|
1
|
|
13
|
BALL GUIDE
|
1
|
|
14
|
COIL SPRING
|
9
|
|
15
|
CYLINDER BLOCK
|
1
|
|
16
|
VALVE PLATEL/R)
|
1
|
|
17
|
STOPPER-SMALL
|
1
|
|
18
|
TILTING PIN
|
1
|
|
19
|
SERVO PISTON
|
1
|
|
20
|
STOPPER-BIG
|
1
|
