Product Description
|
||||||
|
Excavator Models
|
EX200-5 EX220-5 EX230-5 EX230LC-5 EX210LC-5 ZX200 ZX230 ZX240 ZX250
|
Pump models
|
HPV102
|
|||
|
Product size
|
700mm*700mm*650mm
|
Application
|
Excavator
|
|||
|
Displacement
|
102 cm³
|
Pressure Rated
|
35 Mpa
|
|||
|
Pressure Peak
|
38 Mpa
|
Allowable case pressure
|
40 Mpa
|
|||
|
Speed
|
2000 RPM
|
Module
|
2.5
|
|||
|
Working pressure
|
35 bar/Mpa
|
Flow rate
|
102ml/min
|
|||
|
Discharge Rate
|
102cc/rev
|
Temperature range
|
-20℃ to -90℃
|
|||
|
Max. Pressure
|
350kg/cm²
|
NO.of teeth
|
15 T
|
|||
|
Weight
|
220kg
|
Pressure angle
|
20°
|
|||
|

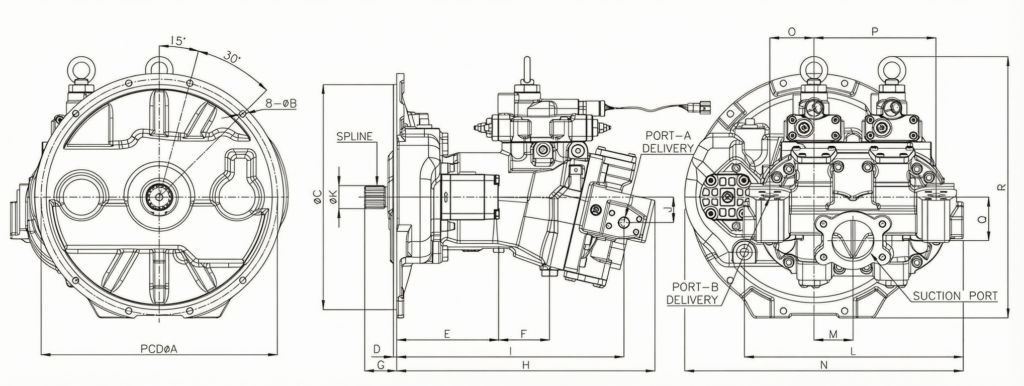

Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
|
HPVO102
|
428.5
|
11.3
|
409.6
|
6.5
|
184.5
|
92
|
58
|
467
|
411.3
|
|
Model
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
Q
|
R
|
|
HPVO102
|
46.3
|
42
|
396.5
|
70.6
|
504
|
80
|
221
|
79.3
|
477
|
